Infinity Open Roll Model ORS-40R is a value-engineered thermoplastic bracket system with a clean curved modern style and is fully universal for ceiling or wall mount applications. The 54x40mm mounting base provides for a strong and secure installation. It accommodates small to medium sized shades and integrates with our Dynamic-Lift™ Chain operated control allowing for effortless lifting and lowering of commercial shade applications. Dynamic-Lift™ allows lowering of shades to various positions by pulling down on the bottom bar. READ MORE...
Extruded aluminum roller tubes, ranging from 32mm-38mm in diameter, can withstand a wide range of weights and dimensions.
Bottom bar 15x25mm extruded aluminum rectangular design provides for effective fabric stability and contemporary finish. Optional seal/gasket available for sill protection. Welded Bottom Hem Pocket available upon request. Bottom bar end caps 21x30mm fastened with screws for added durability and capped to conceal fasteners.
Engineered thermoplastic components all UV resistant and glass reinforced for maximum durability and performance. Available in White, Black and Grey. Custom colours available for large projects.
Infinity Open Roll Models ORS-45, ORS-55, ORS-65 are commercial grade steel and thermoplastic bracket systems allowing for a broad range of window shade sizes from small to large while maintaining the same contemporary design cue throughout the range.
Manual Control systems include Dynamic-Lift™ Chain, Dynamic SoftSpring™, Dynamic SoftSpring™ Wand: all manual systems feature our Dynamic-Lift™ dual layer concentric spring assembly which provides uniformed superior performance for demanding commercial applications. Dynamic-Lift™ allows lowering of shades to various positions by pulling down on the bottom bar. READ MORE...
Moto-Roll motorized options range from 12volt battery operated systems, to 24v and 120v options with available home and building automation control systems.
Overall rectangular design end brackets and bottom bar offer clean lines.
Extruded aluminum roller tubes, ranging from 32mm-63mm in diameter, can withstand a wide range of weights and dimensions.
Bottom bar 15x25mm extruded aluminum rectangular design provides for effective fabric stability and contemporary finish- bottom bar end caps 21x30mm fastened with screws for added durability and capped to conceal fasteners. Optional seal/gasket is available for sill protection. Welded Bottom Hem Pocket are available upon request.
Larger shades include our DynaBar™ 40 - bottom bar 11x40mm with our patent pending self-leveling system to accommodate uneven sills/floors. This bottom bar accommodates an optional seal/gasket for sill protection.
Optional shade holder profiles available for ORS-45, and ORS-55 systems only.
All thermoplastic components are UV resistant, and glass reinforced for maximum durability and optimal performance. Available in White, Black and Grey - custom colours available for large projects.
Infinity Open Roll Models ORS-80, and ORS-90 are a high-grade roller system engineered for large motorized applications. Its Heavy-Duty bracket system with ball bearing center axles and bearing idles provides for ultimate safety and durability for commercial applications and public spaces.
Moto-Roll motorized 120v options with available home and building automation control systems.
Overall round bracket design complements the typically large roller system diameters. READ MORE...
These systems include our DynaBar™ 40 – weighted bottom bar 11x40mm with our patent pending self-leveling system to accommodate uneven sills or floors. Bottom bar end caps are fastened with screws for added strength and durability. This bottom bar accommodates an optional seal/gasket for sill/floor protection.
Extruded aluminum roller tubes, ranging from 63mm-120mm in diameter, can withstand a wide range of weights and dimensions.
All thermoplastic components are UV resistant, and glass reinforced for maximum durability and optimal performance. Available in White, Black and Grey - custom colours available for large projects.
Infinity Cassette Models CRS-65 / CRS-80 are fully enclosed clean lined modern cassettes providing an integrated appearance to commercial windows and curtain-wall glazing structures.
The fully enclosed aluminum cassettes encase and protects the fabric roller system during operation and from dust accumulation on top of roller. Its profile augments the contemporary feel of the interior while ensuring a unified appearance. Contained within a complete aluminum extrusion profile, fully enclosed cassettes provide a strong and secure roller system. Cassettes are fully factory assembled, quality tested and calibrated for ultimate performance. READ MORE...
Manual Control systems include Dynamic-Lift™ Chain, Dynamic SoftSpring™, Dynamic SoftSpring™ Wand: all manual systems feature our Dynamic-Lift™ dual layer concentric spring assembly which provides uniformed superior performance for demanding commercial applications. Dynamic-Lift™ allows lowering of shades to various positions by pulling down on the bottom bar.
Moto-Roll motorized options range from 12 volt battery operated systems, to 24v and 120v options with available home and building automation control systems.
Extruded aluminum roller tubes, ranging from 32mm to 46mm in diameter, can withstand a wide range of weights and dimensions. Bottom bar 15x25mm extruded aluminum profile complements the cassette’s design while providing for effective fabric stability. The bottom bar’s profile is enclosed with 21x30mm end caps - securely fastened and capped to conceal screws. Optional seal/gasket available for sill protection. Welded Bottom Hem Pocket available upon request.
Larger shades include our DynaBar™ 40 - bottom bar 11x40mm with our patent pending self-leveling system to accommodate uneven sills/floors. This bottom bar accommodates an optional seal/gasket for sill/floor protection.
All thermoplastic components are UV resistant, and glass reinforced for maximum durability and optimal performance. Available in White, Black and Grey - custom colours available for large projects.
Infinity Fascia Models FRS-85 / FRS-105 are high quality commercial grade steel and thermoplastic bracket systems which accommodate a front Fascia extrusion to conceal the roller assembly from interior view. The system range accommodates small to large windows as single units or as multi-banded shades operated by a single control. FRS-85 and FRS-105 Fascia systems are available in our range of Dynamic-Lift™ manual controls and the full range of Moto-Roll motorized control systems.
Infinity Fascia Model FRS-140 is exclusively engineered for Moto-Roll 120v motorized control systems as single units or as multi-banded shades operated by a single motor. This heavy-duty roller system is engineered for large motorized applications. Heavy duty bracket system with ball bearing center axles and bearing idles, provides for ultimate safety and durability for commercial applications and public spaces. READ MORE...
Moto-Roll motorized 120v options are available with home and building automation control systems.
All Infinity Fascia bracket systems include engineered locking metal 4-5mm studs which are all mechanically machine pressed and set into each steel bracket for extreme durability which allow each Fascia extrusion to securely engage and lock with no exposed fasteners.
Models FRS-85 / FRS-105 - Manual Control systems include Dynamic-Lift™ Chain, Dynamic SoftSpring™, Dynamic SoftSpring™ Wand; all feature our Dynamic-Lift™ dual layer concentric spring assembly which provides uniformed superior performance for demanding commercial applications. Dynamic-Lift™ allows lowering of shades to various positions by pulling down on the bottom bar.
Extruded aluminum roller tubes, ranging from 32mm to 80mm in diameter, can withstand a wide range of weights and dimensions.
FRS-85 / FRS-105 include bottom bar 15x25mm extruded aluminum profile provide for effective fabric stability. The bottom bar’s profile is enclosed with 21x30mm end caps - securely fastened and capped to conceal screws. Optional seal/gasket available for sill protection. Welded Bottom Hem Pocket available upon request.
FRS-140 include our DynaBar™ 40 - bottom bar 11x40mm with our patent pending self-leveling system to accommodate uneven sills/floors. This bottom bar accommodates an optional seal/gasket for sill/floor protection.
All thermoplastic components are UV resistant, and glass reinforced for maximum durability and optimal performance. Available in White, Black and Grey - custom colours available for large projects.
Steel Open Roll Model-Steel Q is a unique architectural bracket system milled from solid aluminum. The Steel Q’s simple brushed aluminum finish, cantilevered aesthetic, and clean lines speak to sophisticated audiences.
The bracket is available in 3 colour options: anodized clear brushed aluminum, anodized black brushed aluminum and custom powder-coated paint for larger projects. In addition, unsightly installation screws are concealed within the system.
Steel Open Roll Model-Steel R is a unique architectural bracket system milled from solid aluminum. The Steel R’s simple brushed aluminum finish, elegant curves, clean lines speak to sophisticated audiences.
The bracket is available in 3 colour options: anodized clear aluminum, anodized black aluminum and powder-coated aluminum. In addition, unsightly installation screws are concealed within the system.
Steel Open Roll Model-Kromo is a chrome plated steel bracket system. It tends to lend an interior a streamlined techno look, harmonizing with chrome-plated fixtures and accessories.
Manual Control systems include Dynamic-Lift™ Chain, Dynamic SoftSpring™, Dynamic SoftSpring™ Wand: all manual systems feature our Dynamic-Lift™ dual layer concentric spring assembly which provides uniformed superior performance for demanding commercial applications. Dynamic-Lift™ allows lowering of shades to various positions by pulling down on the bottom bar. READ MORE...
Moto-Roll motorized options range from 12volt battery operated systems, to 24v and 120v options with available home and building automation control systems.
Overall rectangular design end brackets and bottom bar provide clean lines and modern design.
Extruded aluminum roller tubes, ranging from 32mm-46mm in diameter, can withstand a wide range of weights and dimensions.
Bottom bar 15x25mm extruded aluminum rectangular design provides for effective fabric stability and contemporary finish- bottom bar end caps 21x30mm fastened with screws for added durability and capped to conceal fasteners. Optional seal/gasket available for sill protection. Welded Bottom Hem Pocket available upon request.
Available upon request DynaBar™ 40 - bottom bar 11x40mm with our patent pending self-leveling system to accommodate uneven sills/floors. This bottom bar accommodates an optional seal/gasket for sill protection.
All thermoplastic components are UV resistant, and glass reinforced for maximum durability and optimal performance.

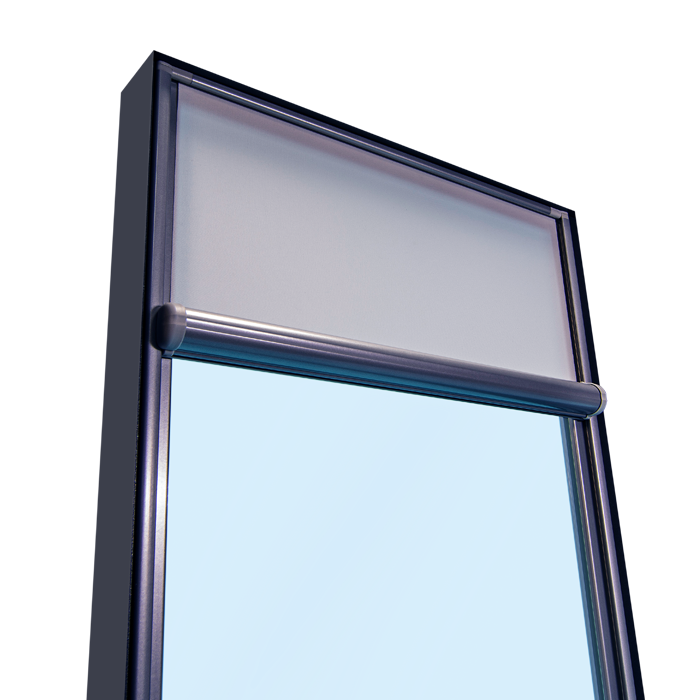

NanoBlind™ Single is a sleek small 37mm cassette manual operated friction roller systems with siderails with no exposed cords or chains. Instead, it is controlled by hand or by means of an optional aluminum detachable control wand. The system is installed directly onto the glass using VHB special double-sided tape which is pre-applied to the siderails. The specially designed ultra-thin fabrics, provide high level blackout or light filtering privacy. NanoBlind™ is ideal for Tilt-Turn window systems. Its standard aluminum and components are available in painted finishes of White, Black and Grey. Custom colours available upon request.
Note: Shades cannot be installed to glass surfaces exceeding a 15-degree angle. READ MORE...
NanoBlind™ Single-roller blind operates from the top-down.
Minimal shade size (WxH) 40x40cm (15.75x15.75”)
Maximum shade size (WxH) 120x140cm (47.25x55”) using Cat A, B & C fabrics
NanoBlind™ Double is a sleek small 37mm cassette manual operated friction roller systems with siderails with no exposed cords or chains. Instead, it is controlled by hand or by means of an optional aluminum detachable control wand. The system is installed directly onto the glass using VHB special double-sided tape which is pre-applied to the siderails. The specially designed ultra-thin fabrics, provide high level blackout or light filtering privacy. NanoBlind™ is ideal for Tilt-Turn window systems. Its standard aluminum and components are available in painted finishes of White, Black and Grey. Custom colours available upon request.
Note: Shades cannot be installed to glass surfaces exceeding a 15-degree angle. READ MORE...
NanoBlind™ Double-roller operates in variable positions from Top–Down to Bottom-Up.
Minimal shade size (WxH) 40x70cm (15.75x27.55”)
Maximum shade size (WxH) 120x180cm (47.25x70.86”) using Cat A & C fabrics.
Maximum shade size (WxH) 120x230cm (47.25x90.5”) using Cat B Light Filtering fabrics only.
Skyzip-115 is a Motorized 120VAC skylight system with Zip Fabric Retention System and self -supporting structure factory assembled and calibrated. Secondary frames not required and can be installed as a complete unit or assembled on-site.
Extruded aluminum Cassettes 115x115mm, contains 120v motorized drive unit with take-up reels pulling fabric unit using 6mm drive belt 700Nm tensile strength, UV protected, rot resistant. Tension system cassette on opposite end provides effective tension to retract sun-control or blackout fabric. READ MORE...
6mm drive belt is nonvisible and contained within extruded 40x50mm aluminum side channels effectively guided by coextruded Zip track profile. Its extruded aluminum roller tubes ranging from 46-63mm with internal spline groove to secure fabric.
Bottom Bar 30x48mm extruded aluminum allow for effective travel and connection points within the channel system. Engineered thermoplastics for UV resistance.
Exterior Technical fabrics Catalogue available upon request.
KBK-135 motorized 120v is a motorized multi-positional tensioned shade system that can be installed vertically with the cassette positioned at top or bottom to function as a bottoms-up shade or adapt to many skylight configurations.
Compensating variable 10mm Zip Fabric Retention System and continuous internal cable tension provides constant fabric tension throughout operation of shade. This also allows for a multitude of skylight configurations to be achieved. READ MORE...
Extruded aluminum Cassette 118x134mm, contains 120v motorized drive unit with internal drive belt pullies. Aluminum extruded 56x57.5mm aluminum side channels are effectively guided by coextruded Zip track profile.
Extruded aluminum roller tubes with internal spline groove to secure fabric.
BottomBar 56x65mm extruded aluminum contains tension system and pulley assemblies to allow cables to effectively provide constant tension to the fabric.
All materials are fully non corrosive and can also be installed on exterior applications.
Maximum size (WxH) 300x350cm (118”x137.8”)
Minimum size (WxH) 85x100cm (33.5x39.37”)
Compensating variable 10mm Zip Fabric Retention System
Various system configurations
A - Cassette system top-downward travel.
B - Cassette system bottom-upward travel
C - Cassette system side left or right-travel laterally.
