Exterior Shade System Motorized 120VAC 60Hz with Zip Fabric Retention System and self- supporting bracket structure. Certified CE norm EN 13561 for External Blinds rated for Class 6 Wind Resistance up to 80 Km/h winds when installed within 10 cm from glazing façade.
Extruded aluminum Cassette 115x115mm, extruded aluminum roller tubes with internal spline groove to secure fabric. Extruded Aluminum Channels 40x50mm to allow self-adjusting Zip Spline profile. Side channels 115x50mm available for recess flush mount applications. READ MORE...
Bottom Bar 30x48mm extruded aluminum allow for 3 internal port weight bars for system stability. Engineered thermoplastics for UV resistance.
Exterior Technical fabrics Catalogue available upon request
Obstacle Detection Motors included on all units
Wind Sensors highly recommended.

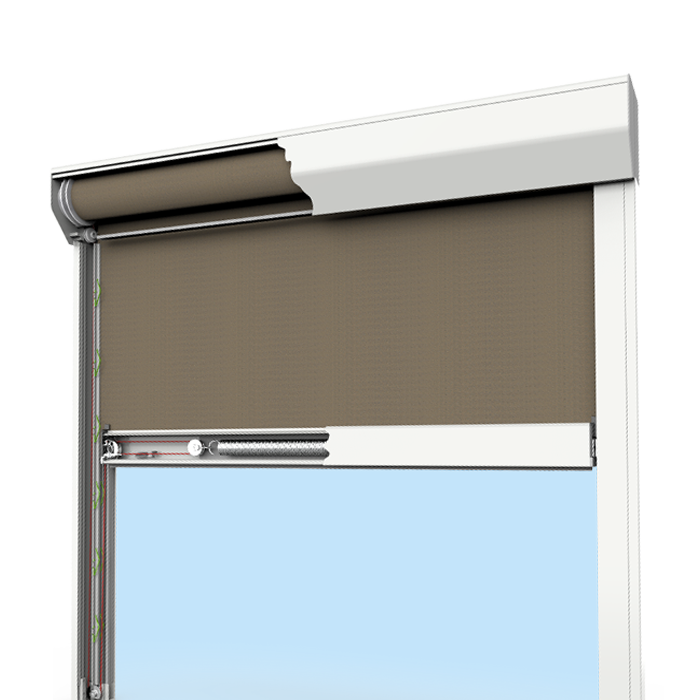

KBK-135 Motorized 120VAC is a motorized multi-positional tensioned shade system that can be installed vertically with the cassette positioned at top or bottom to function as a bottoms up shade or adapt to many skylight configurations.
Compensating variable 10mm Zip Fabric Retention System and continuous internal cable tension provides constant fabric tension throughout operation of shade. This also allows for a multitude of configurations to be achieved. READ MORE...
Extruded aluminum Cassette 118x134mm, contains 120v motorized drive unit with internal drive belt pullies.
Aluminum extruded 56x57.5mm aluminum side channels effectively guided by coextruded Zip track profile.
Extruded aluminum roller tubes with internal spline groove to secure fabric.
BottomBar 56x65mm extruded aluminum contains tension system and pulley assemblies to allow cables to effectively provide constant tension to the fabric.
All materials are fully non corrosive and can also be installed on exterior applications.
Maximum size (WxH) 300x350cm (118”x137.8”)
Minimum size (WxH) 85x100cm (33.5x39.37”)
Exterior Shade System Motorized 120v 60Hz for glazing façade and large openings. Extruded aluminum cassette 130mm diameter with 5mm Inox stainless steel cables. AISI 316 with threaded end connectors for wall or slab anchor connections. Extruded aluminum or galvanized roller tubes 64-70mm with internal spline groove to secure fabric. Aluminum bracket system painted to standard finishes for wall or underside mounting surfaces.
Bottom bar aluminum extrusion 40mm diameter with sufficient weight bars inserted within welded fabric hem pocket with added rivet retainers for added stability. Bottom bar self-adjusting end caps are guided along the 5mm cable system. READ MORE...
Engineered thermoplastics glass reinforced with UV resistance.
Exterior Technical fabrics Catalogue available upon request
Obstacle Detection Motors are optional.
Wind Sensors highly recommended.
Plisse Z-40 is a retractable 20mm pleated insect door screen for lateral applications. Minimal 5mm bottom sill track allows for easy passage. Screen is maintained within a unique bottom track system that retracts and disappears when not in use. Aluminum extrusions conceal and protect the screen system including the top track for effective operation. Door screen is easily removable by end users for off season storage without the need for special tools. READ MORE...
Maximum size for 1 panel-200x300cm (78.75”x118”)
Optional Frontal mount aluminum frame available
Aluminum colours: White 9010, Ivory 1013, Black 9005. Special colours available upon request. Component colours: Black, White
Jolly 38 is a retractable insect door screen for lateral applications. Minimal 5mm bottom sill track allows for easy passage. Screen is maintained within a unique bottom track system that retracts and disappears when not in use. Aluminum extrusions conceal and protect the screen system including the top track for effective operation. Ergonomic design of the screen bar allows for ease of operation from both sides of screen. Door screen is easily removable by end users for off season storage without the need for special tools. READ MORE...
Maximum size for 1 panel-160x280cm (63”x110.25”)
Maximum size for 2 panel centre close – 320x280cm (126”x110.25”)
Minimal Height 140cm (55.11”)
Optional Frontal mount aluminum frame available.
Aluminum colours: White 9010, Ivory 1013, Black 9005. Special colours available upon request. Component colours: Black, White
Maxma is a retractable insect door screen for large lateral applications up to 4 meters (13feet) in width. Low profile aluminum bottom sill track allows for easy passage. “Stop & Go” locking mechanism integrated within the screen handle bar allows for intermittent stopping positions of the screen.
DuraNet insect screen with Zip Fabric Retention System allows maximum screen hold during windy conditions. Aluminum extrusions conceal and protect the screen system including the top track for effective operation.
Available in 2 panel configurations to cover wide spans up to 8 meters (26 feet) in width. READ MORE...
Maximum size (WxH)
1 panel-400x300cm (78.75”x118”)
2 panel -800x300cm (315”x118”)
Minimal Height – 190cm (74.8”)
Aluminum colours: White 9010, Black 9005. Special colours available upon request. Component colours: White, Black
Klip 40 is a vertically retractable spring-operated insect screen for window or door applications. Semi-round 40mm aluminum cassette and 35mm side channels protects the screen and provides effective complete insect protection. Optional slow rise mechanism available upon request. READ MORE...
Maximum size (WxH) 180x240cm (70.8”x 94.5”)
Minimum width 45cm (17.7”)
Optional Frontal mount aluminum frame available.
Aluminum colours: White 9010, Ivory 1013, Black 9005. Special colours available upon request. Component colours: Black, White
